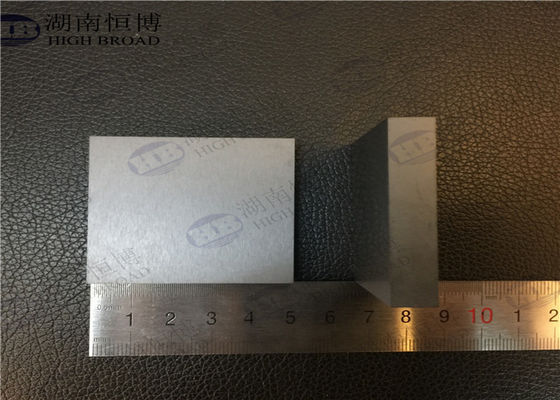

Ceramic Ballistic Armour Plates / Silicon Carbide Ceramic Tiles For Understanding Armor Plate

Ceramic Ballistic Armour Plates / Silicon Carbide Ceramic Tiles For Understanding Armor Plate

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: High Broad or OEM
Chứng nhận: ISO
Model Number: Silicon Carbide

Thanh toán:

Minimum Order Quantity: 10 kgs
Giá bán: negotiable
Packaging Details: in carton
Delivery Time: 10 mt: 14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100mt per month
Giá tốt nhất Tiếp xúc

Thông tin chi tiết

Product name: NIJ III lightweight high level bullet proof panel ballistic plate single-curve pure Armored UHMWPE plate Grade: NIJ III, NIJ IV,
Application: Bulletproof, ballastic protection Shape: squre,hexongal,rectangular, round
Content: Silicon carbide boron carbide maetrial other name: bulletproof ceramic tiles / ballistic ceramic tiles / armor plate
Material: SIC , B4C
Điểm nổi bật:

ballistic ceramic tile

,

Ballistic Armour Plates

Mô tả sản phẩm

Ballistic ceramic plate Boron carbide / Silicon carbide Ceramic tiles for understanding armor plate

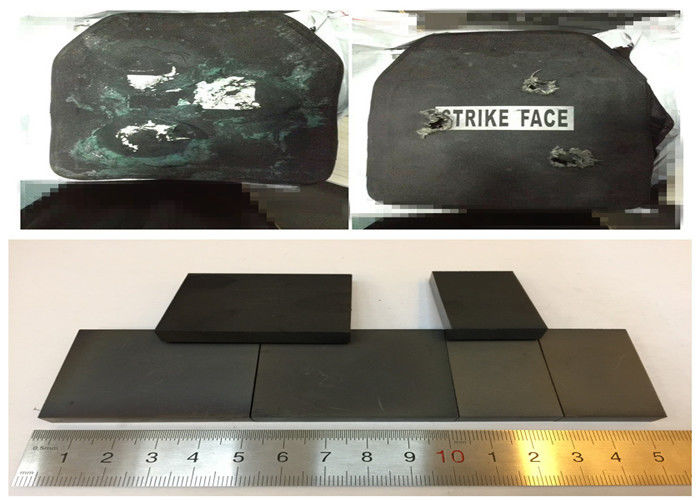

NIJ IV Boron carbide bullet board

Unit weight 2.43kg/piece

Firearms: Type 53 7.62 mm ballistic gun

Ammunition: Type 53 7.62 mm armor-piercing incendiary

Dorsal within 30



Material Comparation Chart:



Item

Al2O3

SiC

B4C

Density

3.5g/cm3

3.1g/cm3

2.4-2.65g/cm3

Hardness

HV1650

HV2750

HV3300

Flexural strength

290 Mpa

380 Mpa

400-650 Mpa

Compressive strength

850 Mpa

3970 Mpa

4100 Mpa

Fracture toughness

4.8 Mpa.m1/2

4.0 Mpa.m1/2

4.5-7.0 Mpa.m1/2

Thermal Conductivity

20 m0k

120m0k

29 m0k





Specifications:



Density:          2.40-2.65 g/cm3

Elastic modulus:   510 Gpa

Knoop Hardness:  3300

Flexural strength:  400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness:   4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

















Hexagon shape

Side Width(mm) Thickness (mm)
20 2
20 3
20 4
20 5
20 6
20 7
20 8
20 9
20 10









Hexagon shape

Side Width(mm) Thickness (mm)
30 2
30 3
30 4
30 5
30 6
20 7
30 8
30 9
30 10



















Hexagon shape

Side Width(mm) Thickness (mm)
40 2
40 3
40 4
40 5
40 6
40 7
40 8
40 9
40 10
40 20
40 30
40 40
40 50
40 60













Square shape

Rectangular shape

Width (mm) Length (mm) Thickness (mm)
50 50 2
50 50 3
50 50 4
50 50 5
50 50 6
50 50 7
50 50 8
50 50 9
50 50 10
50 50 20

Ceramic Ballistic Armour Plates / Silicon Carbide Ceramic Tiles For Understanding Armor Plate 0
